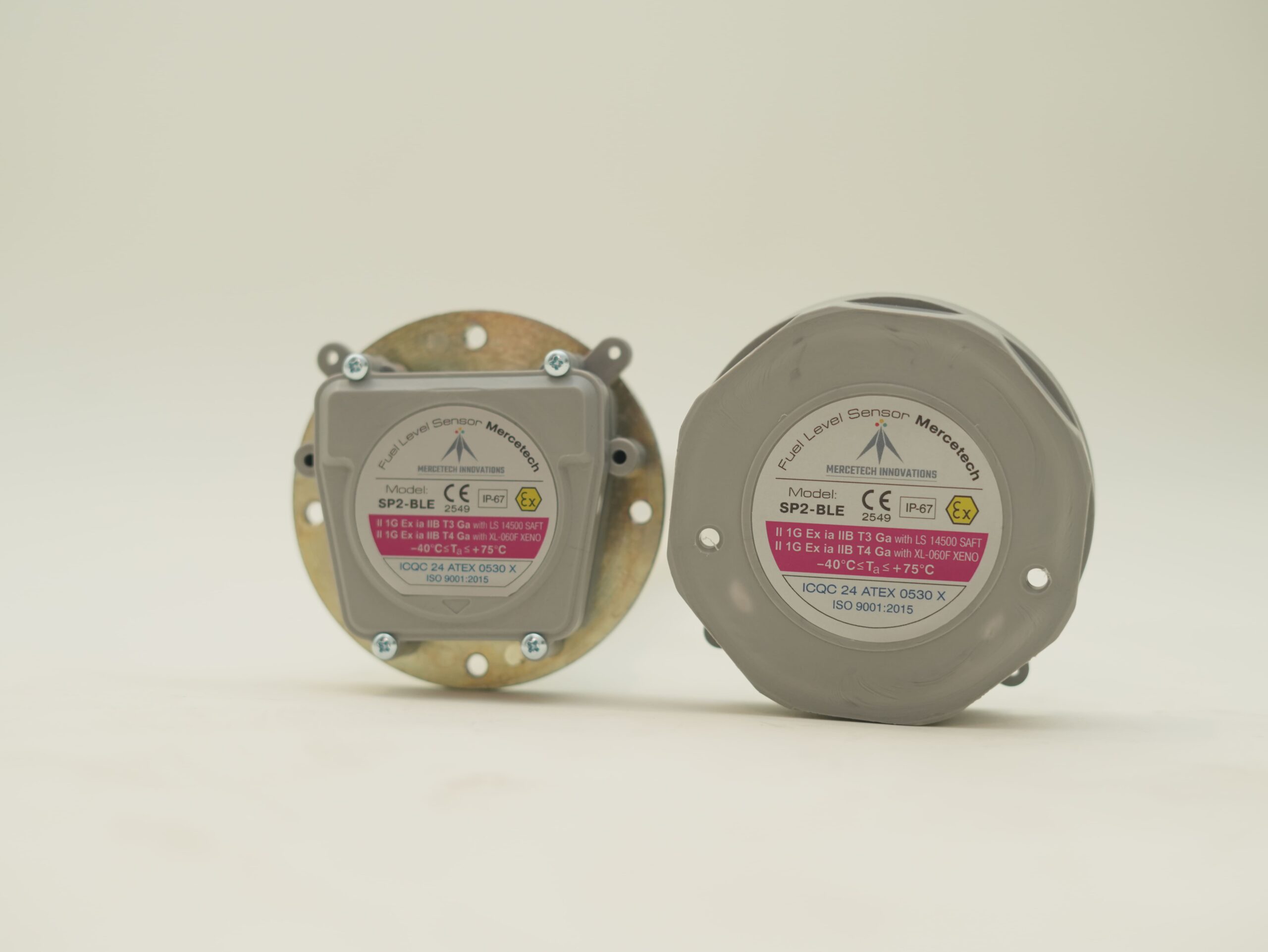

MERCETECH SP-BLE» FUEL LEVEL SENSOR

DESCRIPTION

  • High-resolution of the sensor, linearity, temperature stability.
  • Calibration table inside the sensor head. Allows transferring data directly in litres.
  • Galvanic isolation. Protects sensor head from power surges.
  • Wide range of possible probe length from 15 to 300 cm.
  • Ease of installation. Any hack saw can be used to cut the probe.

Download Manual PDF

SKU: su1 Category:

Description

PURPOSE – FOR FUEL MONITORING AND FUEL CONSUMPTION

The Sensor is designed to measure the fuel level in reservoirs and fuel tanks of vehicles as well as in stationary fuel storage facilities. The Sensor can be used to measure the level of other non-electrically conductive liquids. The fuel level is measured by a measuring head integrated into a single unit with a probe immersed in the fuel. The measuring probe performs the function of a capacitor, the capacity of which depends linearly on the fuel level in the tank.

SENSOR INSTALLATION AND CONNECTION

Sensor installation and sealing is carried out in accordance with the Installation and Operation Manual.

The Sensor can be used directly with equipment that supports BLE technology. For equipment without BLE support, data from the Sensor can be received using a BLE sensor reader that can be connected via the RS-232 (BTR2/BR2x models), RS-485 (BTR4/BR4x model) or USB (BRU2 model) interfaces.

Additional information

Limits of the Full Scale Level Measuring Error, %

± 1.0

The Upper Limit of the Measurement Range, mm

150…3000*

Resolution, mm

0.1

Data Sending Period, sec.

1.2

Reaction Time to a Change in the Measured Level, sec.

35

Bit Depth of Code for Representation of Measurement Data, bit

16 , 8

Mode of Operation

Continuous

Time of Continuous Operation from the Battery, Years

5**

Operating Frequency Range, GHz

2.400–2.485

Radiation power, dBm

0

Limit range of data reading, m

20***

Supply voltage (lithium battery), V

3.6

Height of the measuring head above the tank surface, including the flange and gasket, mm, no more

28

Operating Temperature Range, °C

-40…+75

Degree of Protection Against Dust and Moisture

IP67
